Aquarius PC ™
Online PC Emitter
The most versatile and easy
to install Pressure Compensating
emitter for a great variety of
applications.
Pressure Compensating (PC)

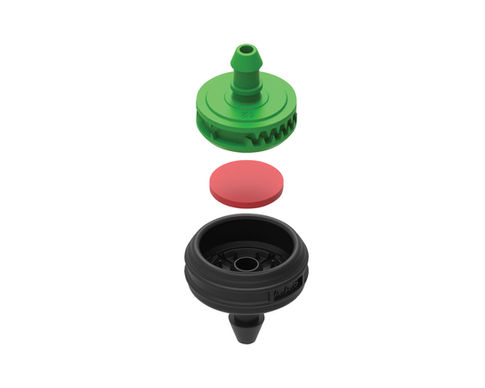

Aquarius PC ™ emitters incorporate a silicone membrane which enables the delivery of precise and equal amounts of water over a broad pressure range. Aquarius PC ™ emitters are designed for precision irrigation needs, ranging from a home garden to the most advanced hydroponic application.
Ultrasonic Welding Technology
The advanced welding process of Aquarius PC ™ eliminates the problem all online emitters eventually face, leakage between the body and the cover of the emitter. In our emitter this is prevented by a parallel formation and welding of the cover, around the edge of the body of Aquarius PC ™, making it impossible to leak regardless of the climatic or pressure conditions
Drain (D) and Non-Drain (ND) Options
With the Non-Drain system of Aquarius PC ™, the pipe remains full of water during irrigation intervals, ensuring immediate and uniform irrigation along the pipe. Non-Drain emitters eliminate drainage and refill effect, and improve efficiency in pulse irrigation. In order to achieve the Non-Drain function, the emitter closes when the pressure is below 0,1 bar.
Emitter Characteristics
-
Wide range of flow rates 2,0 / 4,0 / 8,0 and 24 l/h (0,5 / 1,0 / 2,0 and 6,0 g/h)
-
Aquarius PC ™ is designed for installation in pipes from 12 mm up to 32 mm diameter and wall thickness from 0,9 mm up to 1,2 mm (35 mil – 47 mil)
-
Wide pressure compensation range, from 0,5 to 4,0 bar
-
Cross shaped water inlet
-
Wide and accurate water passages along the labyrinth
-
Special labyrinth design that ensures highly turbulent flow of the water
-
Continuous self cleaning mechanism ensures non-clogging uninterrupted emitter operation
-
High UV resistance
-
Resistant to standard nutrients used in agriculture
-
Injected molded emitters with excellent Coefficient of Variation (CV), less than 5%
-
Aquarius PC ™ emitters can be installed manually exactly where they are required
-
The number of emitters can be increased in order to increase water supply aimed at meeting tree growth rate requirements
-
Aquarius PC ™ design allows the installation of manifold outlet with multiple outputs
-
One type of outlet suitable for 3 mm internal diameter micro-tube and for press-fit nipple connectors
Product Applications
-
Precision irrigation
-
Uneven terrain
-
Greenhouses and nurseries
-
Orchards
-
Gardening
-
Landscaping
-
Hydroponics
-
Soilless culture
-
Pulse irrigation
Aquarius PC ™ Drain Emitters
2 l/h 0,53 g/h
4 l/h 1 g/h
8 l/h 2 g/h
24 l/h 6,34 g/h
2 l/h 0,53 g/h
