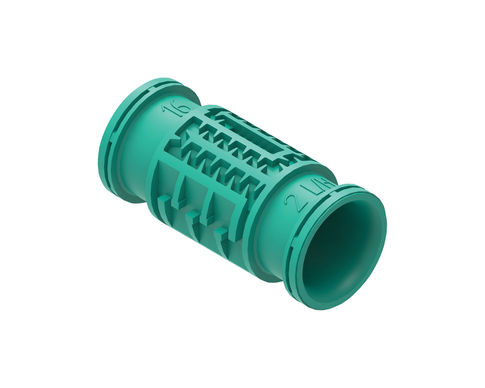

Turbo Compact ™
Cylindrical Turbulent Emitter
Compact and economical emitter for a wide range of applications. Suitable for permanent crops, multi seasonal usage and unexperienced farmers in drip irrigation.
Emitter Flow Path
One of the most important elements in the design of an emitter is the flow path. Its width, depth and length determine the flow rate of the emitter in liters per hour but most importantly determines their anti-clogging ability. A highly turbulent flow design creates multiple vortexes inside the flow path and therefore prevents clogging.
Emitter Characteristics
-
Available in two flow rates 2,0 and 4,0 l/h (0,53 and 1,06 g/h)
-
Suitable for driplines with 16mm diameter
-
Designed for insertion systems of wall thicknesses ranging from 25 mil up to 47 mil (0,65 mm - 1,2 mm)
-
Manufactured from the finest raw materials that provide durability and long-lasting performance
-
Wide and accurate water passages along the labyrinth
-
Specially designed labyrinth creates high turbulent flow, therefore preventing clogging of the emitter.
-
High UV resistant
-
Very high resistance to agrochemicals and hard field conditions
-
Injected molded emitters with excellent Coefficient of Variation (CV), less than 5%
-
Advanced water inlet design, increases filtering area and prevents particle insertion in the emitter, thus enhancing the anti-clogging performance
